Description

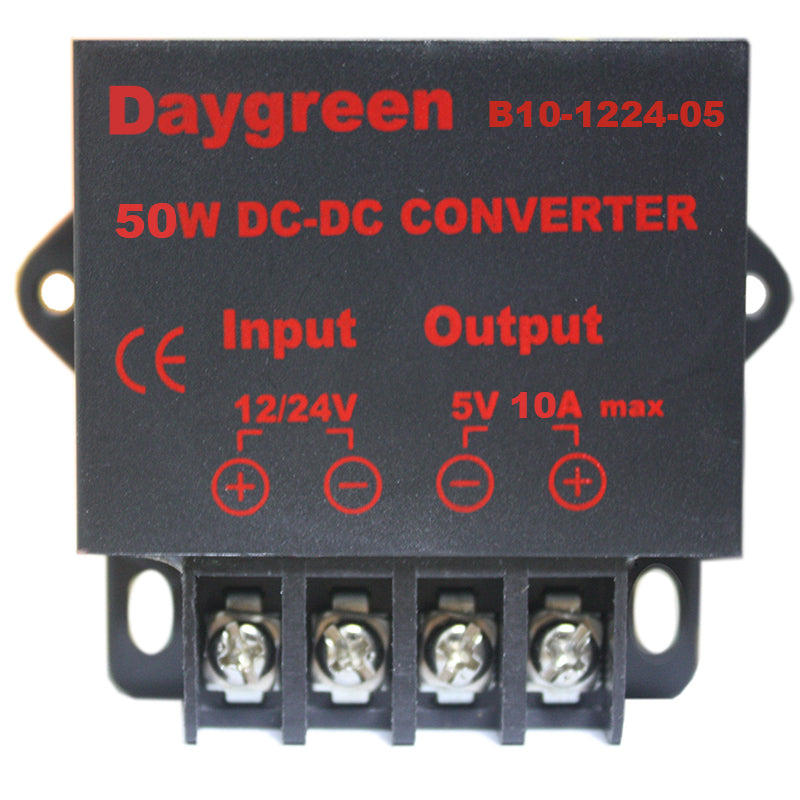

Manufacturer: Daygreen
Wide input voltage from 11 to 30V
Work for appliances from 0AMP to 10AMP automatically
100% full rated power
100% full stable output current
100% burn-in test
High-efficiency up to 95%
Waterproof sealed
Cooling by free air convection
Surface mountable
2-year warranty
Over-current, over-voltage protections
Over-temperature protection
According to:
EN 61000-6-3:2007/A1:2011/AC:2012
EN 55014-1:2006/A2:2011 EN 60950-1:2006/AC:2011
Specifications and Data Sheet
Efficiency: 95%Input Voltage: 11-30V DC
Output Voltage: 5V
Output Current: 10A
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Dimension: 63*53*20mm
Net Weight: 70g
Operating Temperature: -40~85°C
Certificates: CE, ROHS
