Description

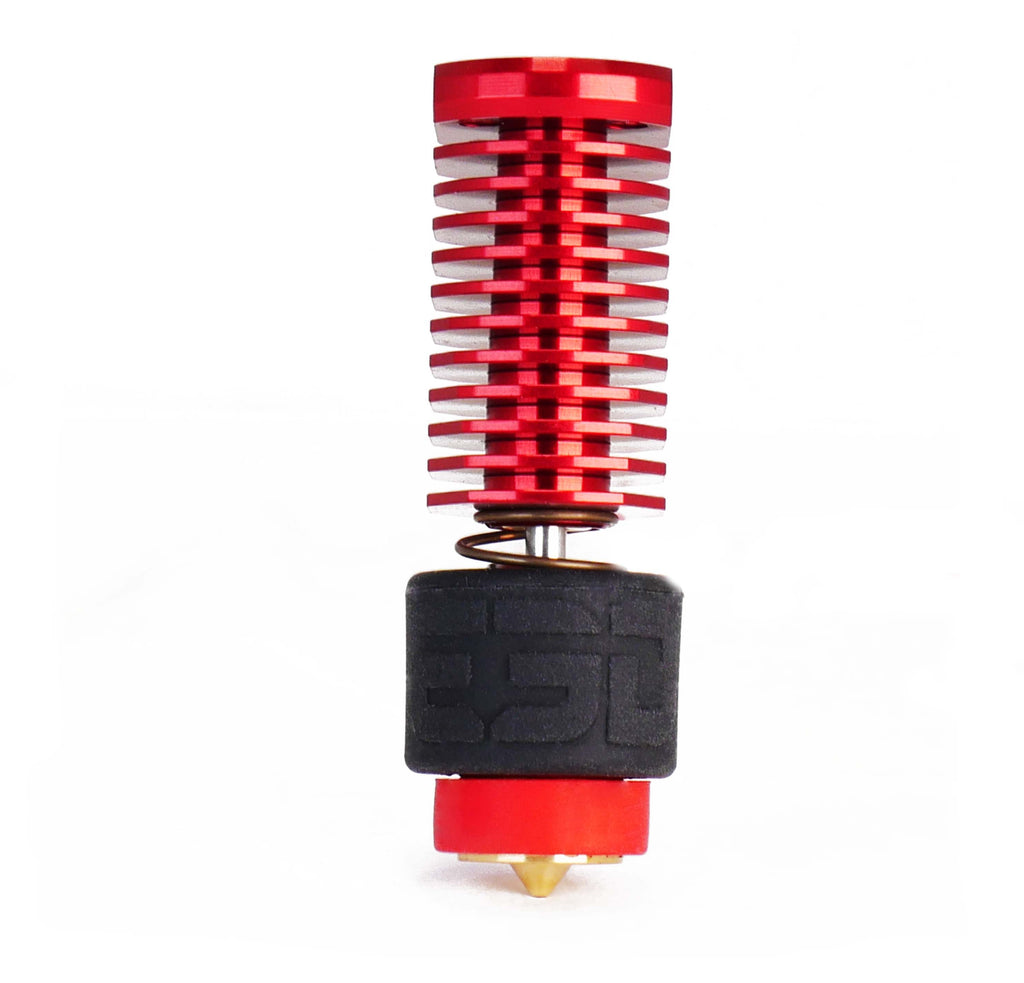

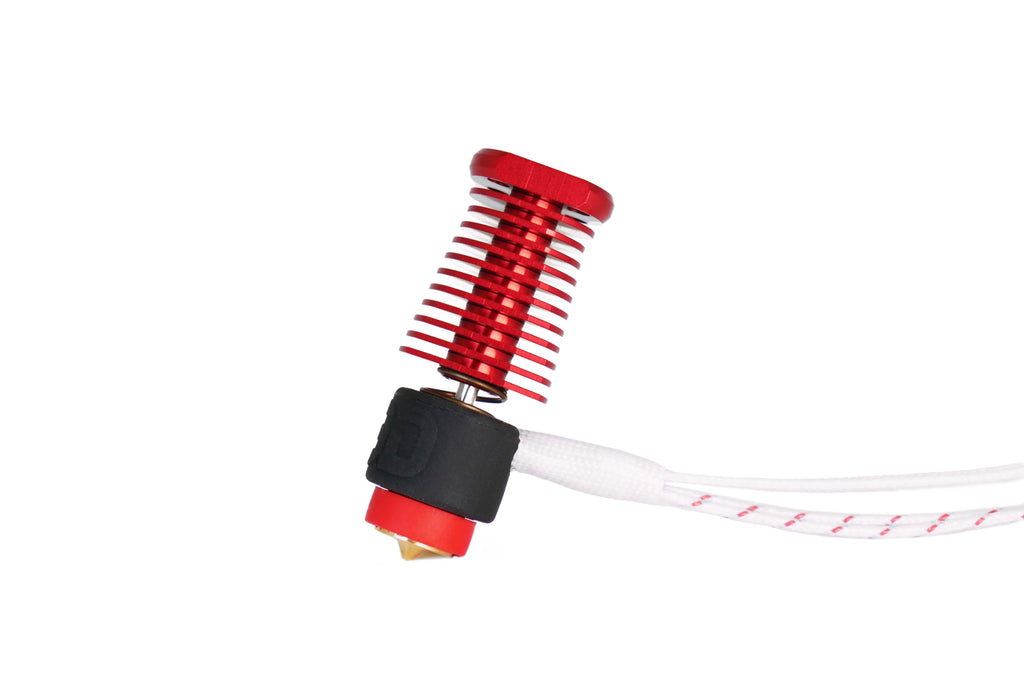

E3D has developed this Revo-compatible cold side in collaboration with Team Voron. It’s intended for use with the Voron StealthBurner, which includes an integrated cold side fan. It’s compatible with our Revo ecosystem, so you can change nozzle size without tools or hot tightening using just your fingers.
- Uses Revo Nozzles – change nozzles cold, no tools, no hot tightening
- Works with a Revo HeaterCore for faster heat-ups
- Rigid mounting using 4 x M3 x 0.5 bolts
- Ultra-lightweight construction for improved speed performance
- Ideal HotEnd for Voron StealthBurner
- Heatsink is licensed under

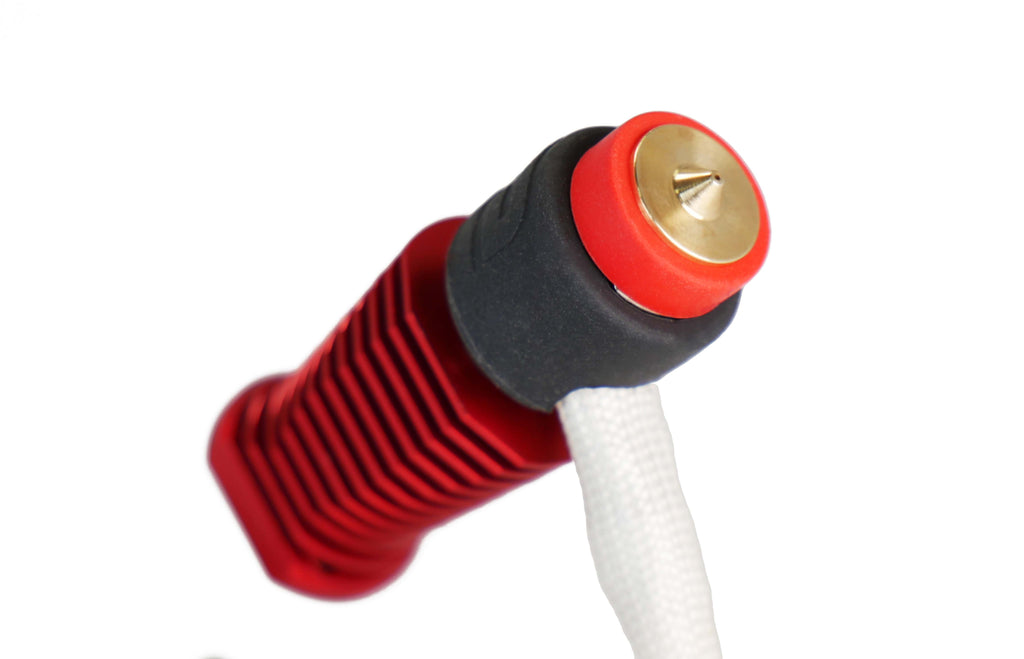

Ready for Revo. A groove at the bottom of the sink accepts a Revo HeaterCore spring. It’s compatible with our Revo ecosystem, so you can change nozzles without tools or hot tightening using just your fingers.
Complements your Voron. Includes an anodised red aluminium heatsink to complement your Voron accented parts.

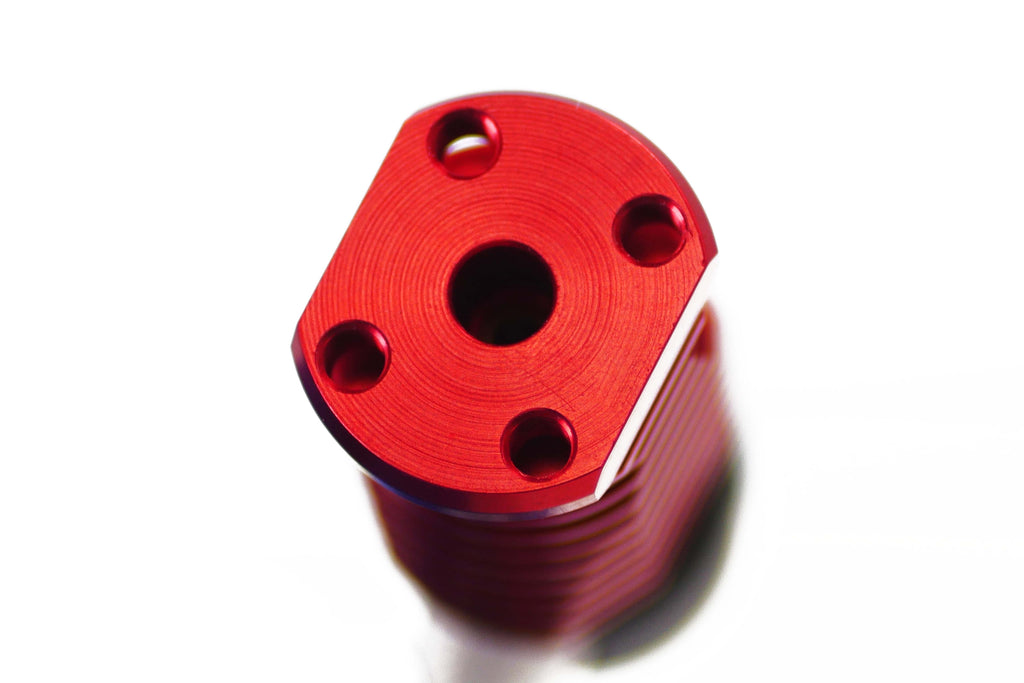

Rigid mounting. This is a rigid mounted design that uses four M3 x 0.5 bolts to secure to your Voron 3D printer.
Compatible with:
|
Voron 1 |
Voron Trident |
Voron Switchwire |
|
Voron 2.4 Troodon 2.0 (with Stealthburner) |
Voron Legacy |
Voron 0.1 |
Please note:
- For full mounting instructions and STL files for Voron printed parts visit: https://docs.vorondesign.com/
- You may need to adjust your Z offset when changing nozzles.
Key features
- Max temp: 300°C
- Works with Revo HeaterCore and Revo Nozzles
- Mass: ~25g
Kit contains
- 1 x 12V or 24V 40W Revo HeaterCore
- 1 x Revo HeaterCore spring
- 1 x Revo Voron HeatSink
Single nozzle kit:
- 1 x 0.40mm brass Revo Nozzle
Fully loaded nozzle kit:
- 1 x 0.25, 0.40, 0.60, and 0.80mm brass Revo Nozzles
Material compatibility
1.75mm
Mount system
Rigid mount (4 x M3 x 0.5)
Voltage
12V or 24V
Dimensions
Height: 48.80mm
Diameter: 48.80mm
See the datasheet for full specs
