Description

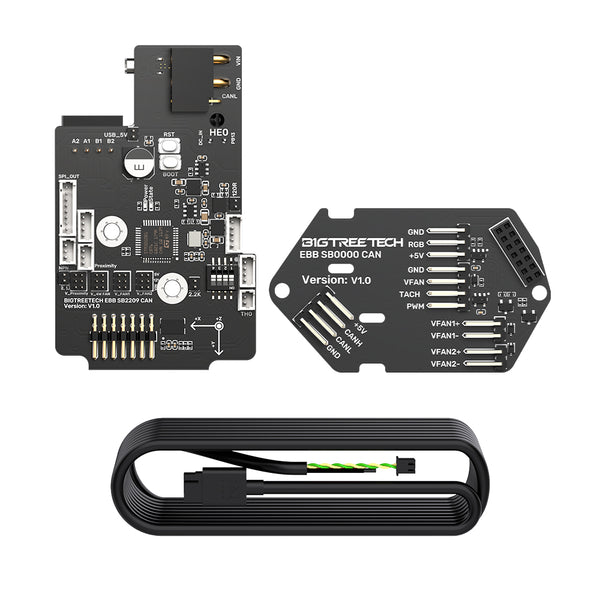

Includes
• EBB SB2209 CAN x1
• EBB SB0000 CAN x 1
• 3m CAN bus Cable x 1
• Heat Sink x 1
• DIY Crimp Terminal Set x 1
• Jumper Cap Set x 1
• Zip Ties x 2
• Fixing Screw Set x 1
Specification
| Built-in Driver | TMC2209 |
| Driver Working Mode | UART |
| MCU |
Arm® 32-bit Cortex®-MO+ CPU STM32GOB1CBT6 64MHz
|
| Input Voltage |
DC12V-DC24V 9A
|
| Logic Voltage | DC 3.3V |
| Heater Connection |
Heater Cartridge (EO), Max Output Current: 5A
|
| Onboard Sensor | ADXL345 |
| Fan Port |
2x PWM (FANO, FAN1), 1 x4 pins Fan Port
|
| Fan Port Max Current |
1A Continuous, 1.5A Instantaneous
|
| Stepper Motor Interface | EM |
| Temperature Sensor Interface |
1x 100K NTC or PT1000(THO), 1 x PT100/PT1000 Selectable
|
| USB Communication Interface | USB-Type-C |
| DCDC 5V Output Max Current | 1A |
| Expansion Port |
EndStop, ABL, RGB, PT100/PT1000, USB, CAN, SPI
|
