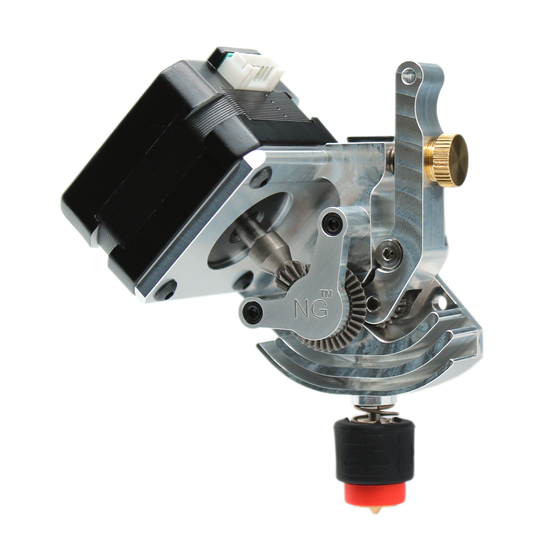

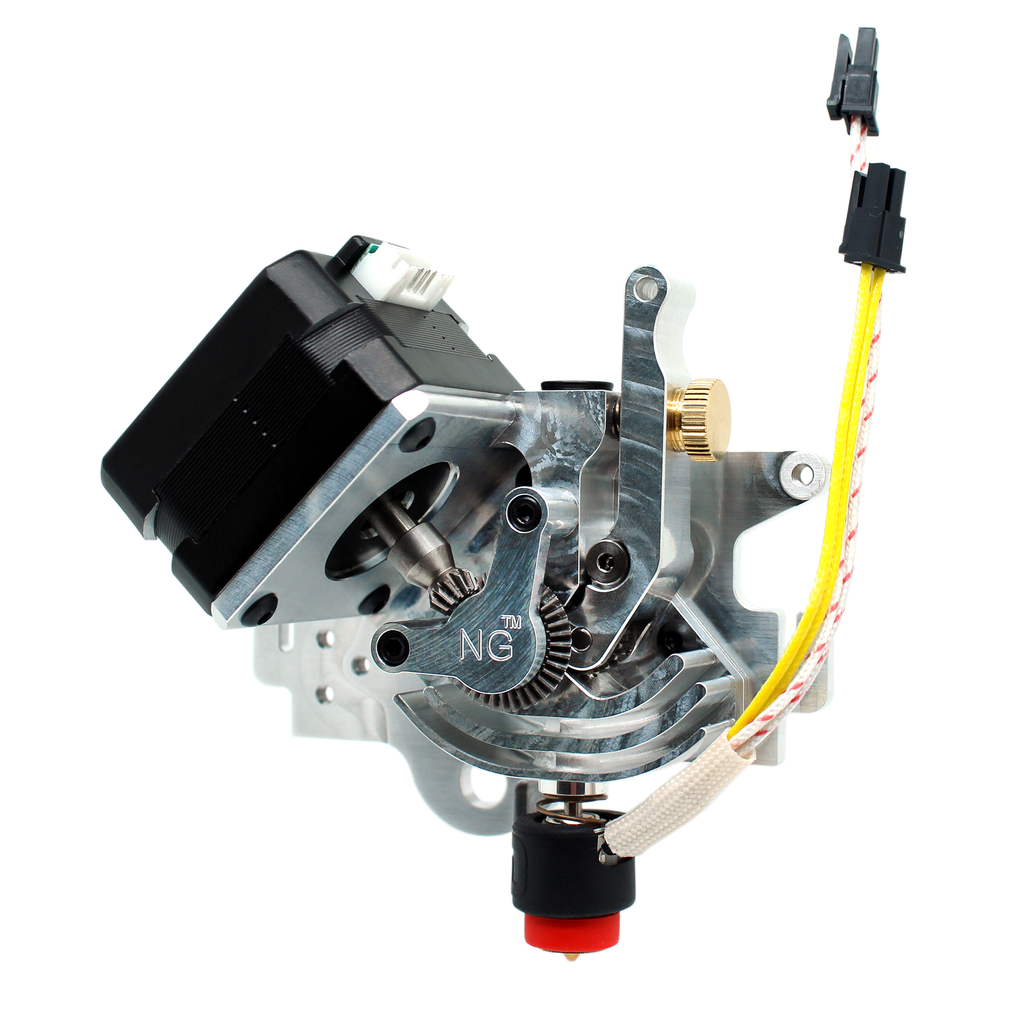

Micro Swiss NG™ REVO Direct Drive Extruder

Micro Swiss NG Revo Extruder is the result of a collaboration between two leading 3D printing companies - Micro Swiss and E3D. This high-quality extruder is designed with both reliability and efficiency in mind, combining the best of both E3D and Micro Swiss technology.

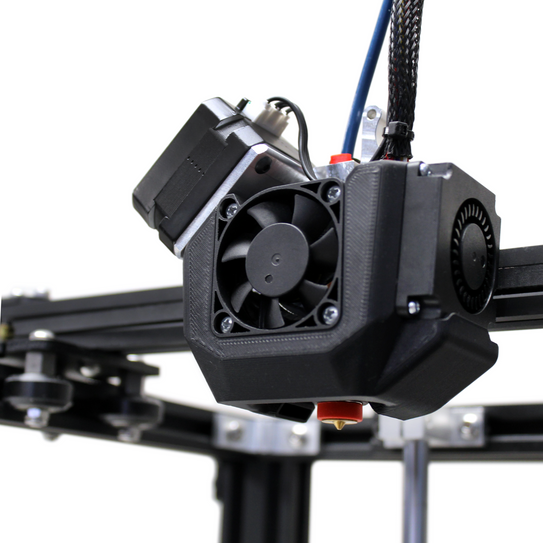

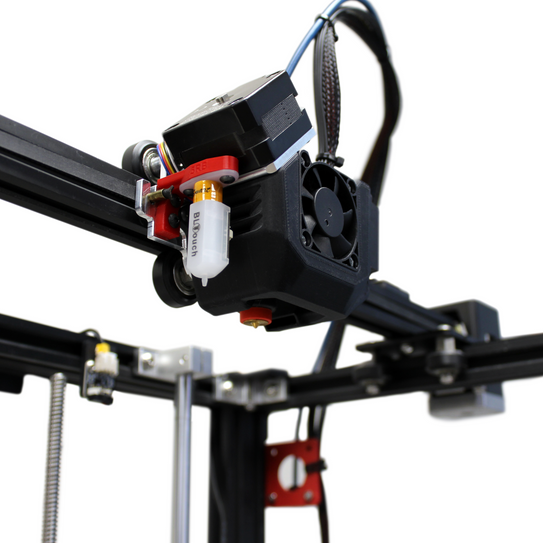

This extruder allows for seamless integration of RapidChange Revo technology with Micro Swiss NG™ extruder line. It is a true drop-in replacement for the Creality Ender 5 / 5 Pro / 5 Plus printers (please see fitment tab for details). This kit includes everything needed to upgrade your printer to a lightweight direct drive system with Revo hotend.

Features:

• Lightweight
• 3:1 Gear ratio
• Adaptable to wide range of 3D Printers
• Hardened steel, precision cut Dual Gear drive
• Bevel Gear system allows a low overhang extruder mount
• Seamless integrated with E3D Revo Hotend
• Fast and Easy nozzle swaps

Made in USA by Micro Swiss

Fits

• Ender 5
• Ender 5 Plus
• Ender 5 Pro

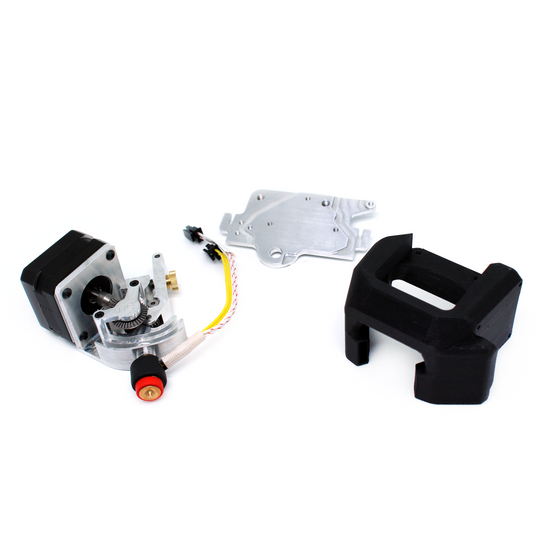

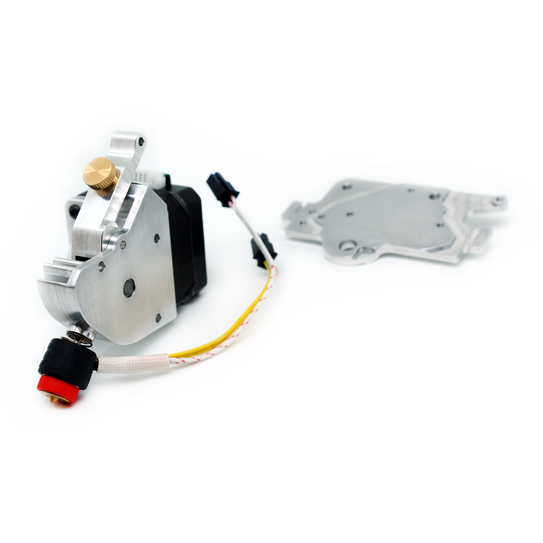

What's in the box

• 1x Master Extruder Assembly
• 1x Adaptation plate
• 1x LDO Stepper motor

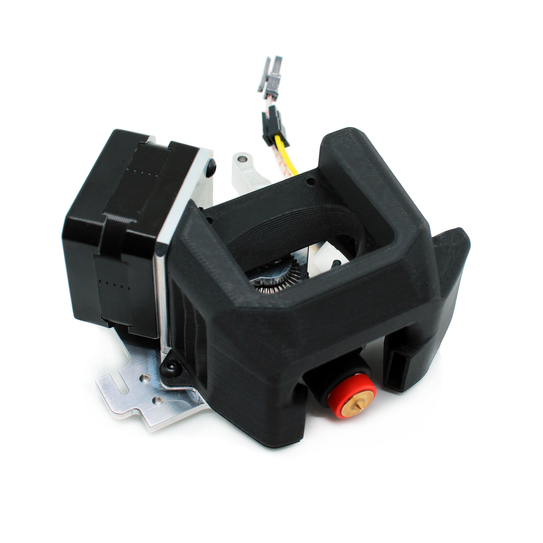

• 1x Fan Shroud
• 1x Custom extension cable
• 3x Printed Brackets
• 1x Revo Hotend assembly
• 1x Revo HeaterCore 24V
• 1x Revo HeaterCore Spring
• 1x 0.40mm Brass Revo Nozzle

Hardware:

• 1x Eccentric nut
• 1x M5 x .8 x 30mm CAP SCREW
• 1x 5mm ID 10mm OD Washer
• 1x M5 x .8 Nylon Lock Nut
• 2x M5 x .8 x 20mm Nylon Patch CAP SCREWs
• 4x M2.2 x 8mm Thread Forming Screw for Plastic
• 4x M3 x 12mm Thread Forming Screw for Plastic
• 5x Zip Ties
• 4x butt splice connectors

Installation

PDF:
Installation Instructions - PDF
Coming soon...

Video Guides:
Coming soon...

Downloads

• Printable shrouds and brackets


• g-code for e-steps


• STEP File
