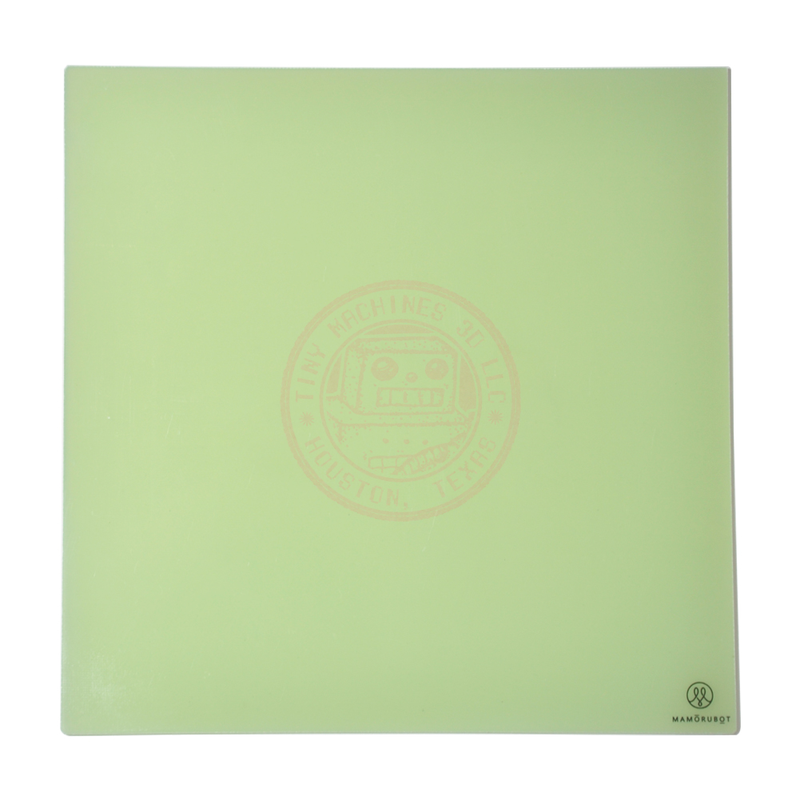

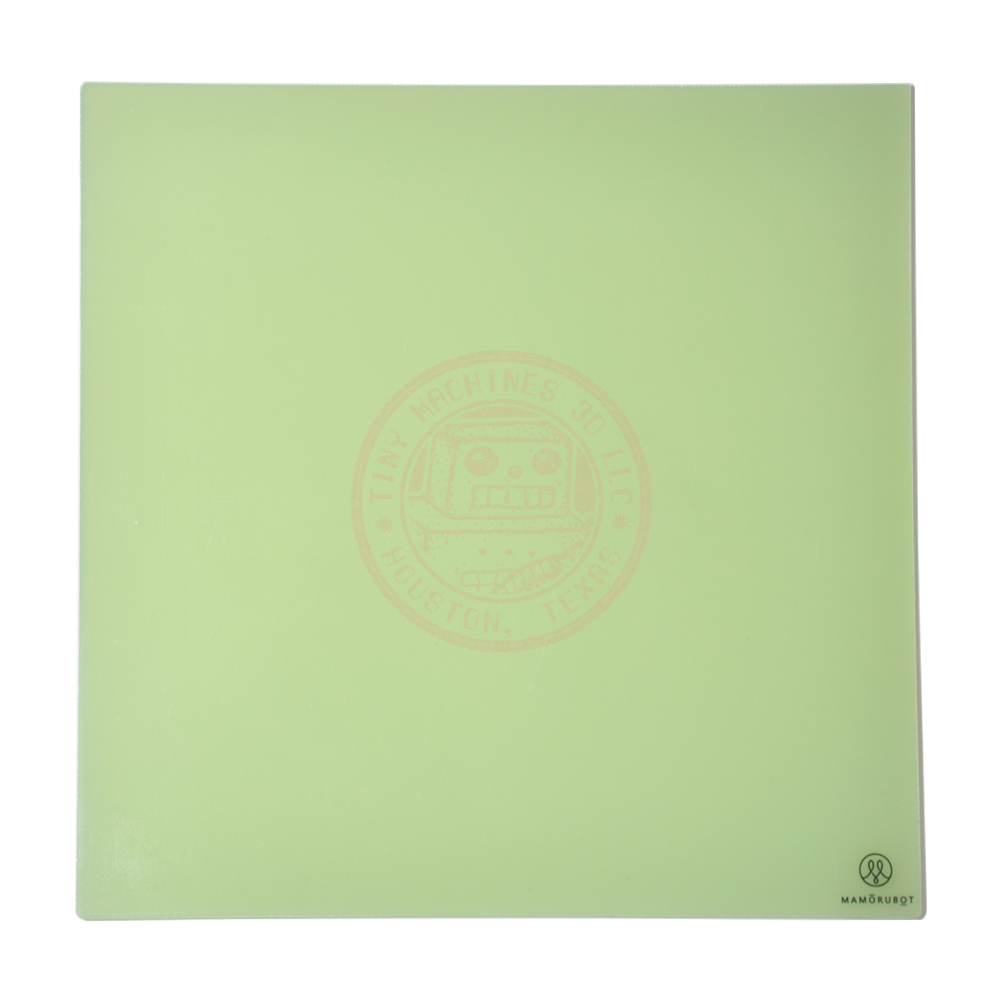

Polypropylene Build Plates for 3D Printers!
Tiny Machines 3D LLC

Polypropylene Build Plates for 3D Printers!

Regular price $15.00

Mamorubot made these for us and they work great! ♥♥♥♥

Benefits

  • Superior adhesion compared to glass. No tape or glue needed with PLA! Adhesion is improved with temperature so prints can be removed easier at room temperature.
  • Compatible with PLA, ABS, and exotics (good up to 130℃).
  • Easy to clean! Use alcohol or warm, soapy water.
  • Weight savings compared to 3mm glass (see chart below)

 Sizes

  • CR-2020             220*220*3 mm
  • CR-10/CR-10S   310*310*3 mm
  • CR-10-S4           410*410*3 mm
  • CR-10-S5           510*510*3 mm
  • CR-10-MINI        235*305*3 mm
  • Ender 2               165*165*3 mm
  • Ender 3/4            235*235*3 mm
  • Tevo Tornado      370*310*3 mm (Holes are drilled like original surface)
  • Formbot              410*410*3 mm
  • Wanhao D9(300) 310*310*3 mm

How to use

  1. Remove Glass and Install Polypropylene Build Plate using the same clips
  2. Reset nozzle height (level the bed)
  3. Wipe with alcohol or glass cleaner
  4. Be sure to set your first layer speed to 20-30 mm/sec
Please understand that some materials may need an adhesion aid.

    Bed Temperature Suggestions

    1. PLA 50-70°C
    2. Flexibles 50-70°C
    3. ABS  100-125°C (110°C is suggested )
    4. PC 100-130°C (120°C is suggested)
    5. Nylon 90-120°C (110°C is suggested)
    6. PP 100-130°C (120°C is suggested)
    7. PETG 65-75°C

    Weights

      Size              PP Plate                 Glass

       310 mm²       .595 kg                  .935 kg

       410 mm²     1.077 kg                1.275 kg

       510 mm²     1.615 kg                2.721 kg

    Happy Printing!
